Zhejiang Weikesen Power Technology Co.,Ltd.

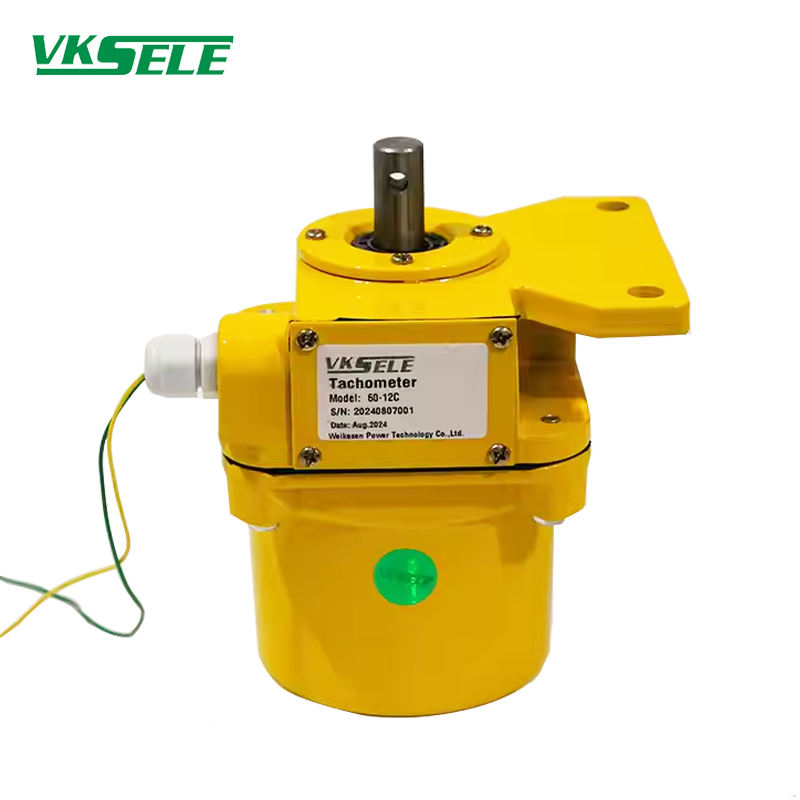

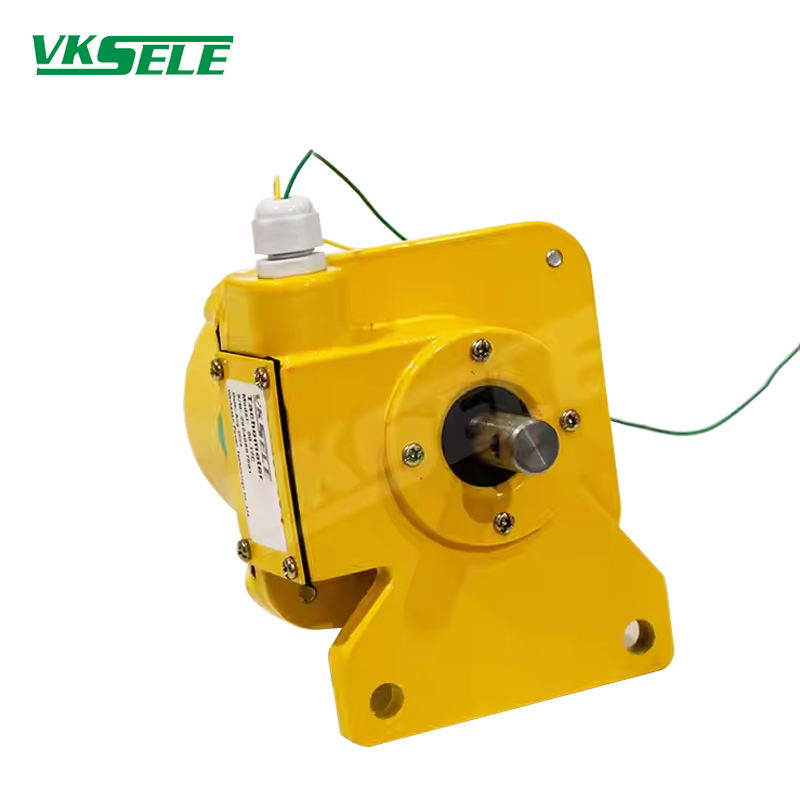

60-12C Tachometer
This machine is installed on the tail roller of the belt conveyor, and the speed measuring roller/roller is installed
on the upper surface of the return belt. The speed sensor is a digital brushless one.
The speed sensor is a digital brushless one. Pulse generator, when the belt is running, the speed sensor sends a
series of speed pulses, each pulse represents a unit length of the belt travel, and the pulse frequency is
proportional to the belt speed.
on the upper surface of the return belt. The speed sensor is a digital brushless one.
The speed sensor is a digital brushless one. Pulse generator, when the belt is running, the speed sensor sends a
series of speed pulses, each pulse represents a unit length of the belt travel, and the pulse frequency is
proportional to the belt speed.
How to operate:
Turn on the machine and select the button to go to the operation interface
Connect to four-wire or six-wire load cell
Connect to 4-20MA output current signal/RS485-232 port
Connect to three-wire or two-wire speed sensor device
Output control frequency conversion, sequential flow, input set amount
Features:
The speed sensor is a brushless AC pulse generator, which does not require adjustment, calibration, or maintenance.
Cast aluminum housing has good shielding and sealing properties, suitable for outdoor installation;

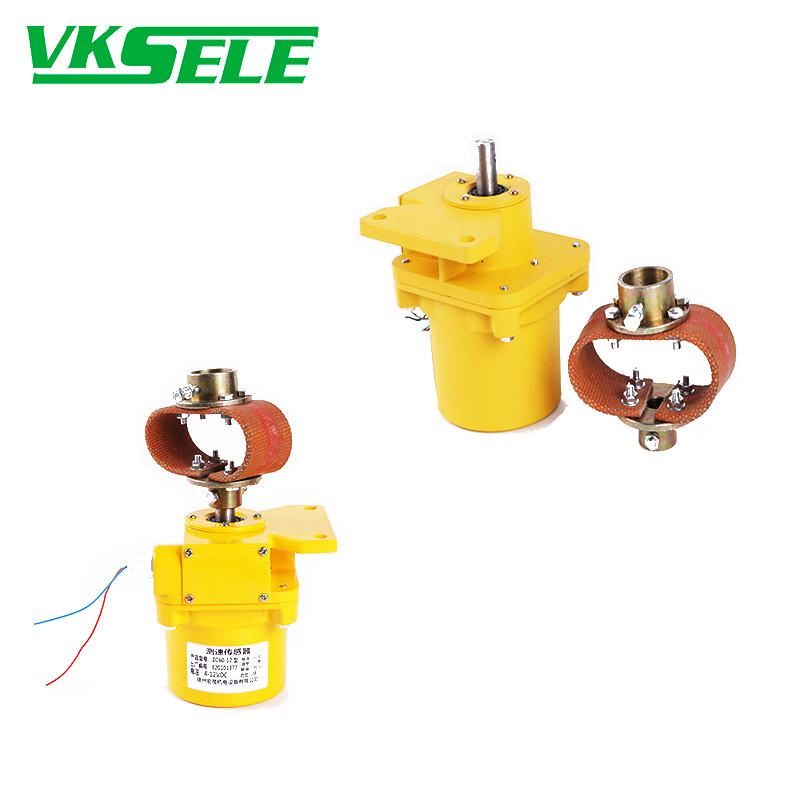

Soft connection technology more effectively ensures the speed measurement accuracy and greatly improves the service life of the equipment.
Technical indicators:
| Item | Parameters |
| Model | 60-12C |
| Product material | Cast aluminum housing |
| Outpur voltage | 0.5-30V |
| Ambient temperature | -20°C-+60°C |
| Relative humidity | ≤95% |
| Hollow shaft inner diameter | 6/16 |
| Allowable mechanical speed | 1000r/min |
| Starting torque | 1*102N.m |
| Structure | Dust-proof |
| Weight | 2Kg |
Speed range | N12C/60-12C/D type:0.6-4.0m/s |
| 60-12B/F/X type:0.1-1.0m/s |
